Decoding the Power: Engine Options and Horsepower Variations

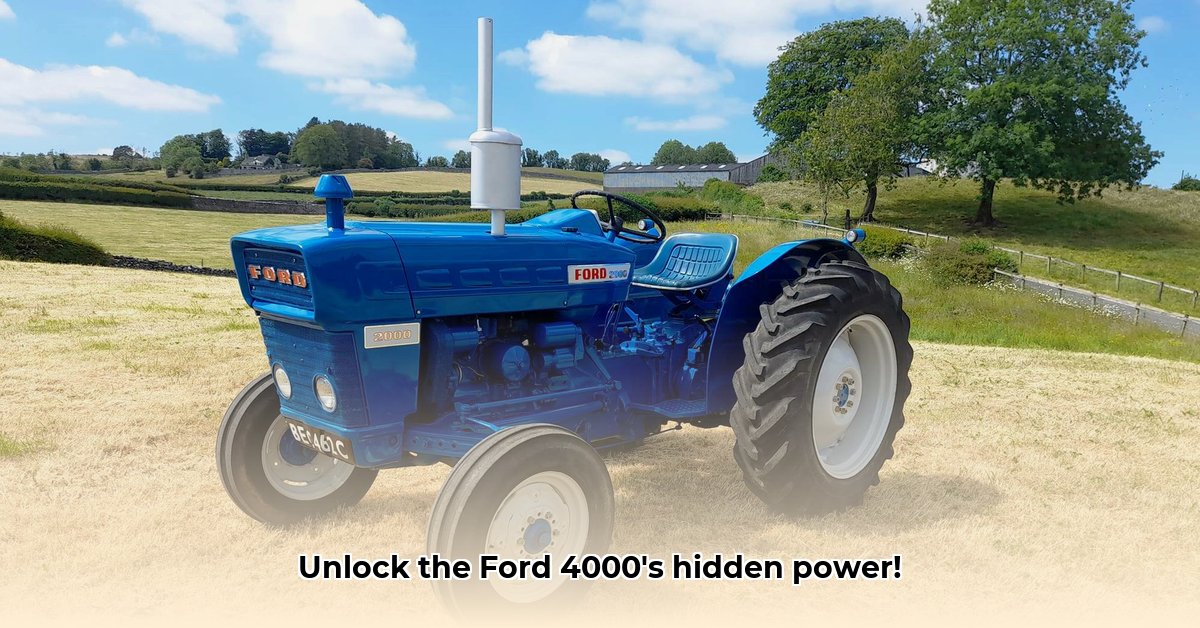

The Ford 4000, a workhorse of the 1960s and 70s, boasted a range of horsepower options depending on the engine fitted. Three main engine types powered these tractors: a gasoline engine (3.1 liters), a diesel engine (3.3 liters), and a less common liquid petroleum gas (LPG) engine (3.1 liters). The diesel, while initially more costly, provided superior pulling power, especially at lower RPMs – ideal for heavy tasks like plowing. The gasoline engine served as a more budget-friendly option, although it generally lacked the diesel's low-end torque. The LPG engine offered a compromise, potentially reducing fuel costs and emissions compared to gasoline. Choosing the right engine was like selecting the right tool for the job – each suited particular needs and budgets. For more detailed specs on similar models, check out this helpful resource: Ford 3000 specs.
How much horsepower did your Ford 4000 have? Finding the precise figure requires research. Original brochures or owner's manuals provide the most reliable information. Online forums dedicated to Ford 4000s are an invaluable alternative if original documentation is unavailable. Expect horsepower figures to range from approximately 41 to 47, but remember that these numbers can vary based on testing methods and engine condition. This variability highlights the importance of checking your specific model's specifications. Did you know that even minor variations in engine components can slightly affect horsepower output?
Transmission Tales: How Gears Shape Performance
The Ford 4000's transmission, while not directly boosting horsepower, significantly impacts its delivery and fuel efficiency. Two main transmission options were available: an 8-speed and a more advanced 10-speed "Select-O-Speed" transmission. The 10-speed offered greater control and superior fuel economy across a range of operations. This is analogous to having more gears on a bicycle; more gears allow for optimized power delivery based on the terrain. A well-maintained transmission ensures maximum efficiency. Neglecting maintenance will compromise power delivery and fuel efficiency. Could a poorly maintained transmission actually reduce the effective horsepower of your Ford 4000? Yes, it can hamper the engine's ability to deliver its full potential to the wheels.
Understanding Drawbar vs. PTO Horsepower
It's crucial to distinguish between drawbar horsepower (DBHP) and power take-off (PTO) horsepower. DBHP measures the power available for pulling implements like plows, while PTO horsepower measures the power at the tractor's rear, used for operating equipment such as balers or mowers. Frequently, you'll find slightly higher PTO horsepower ratings for the same engine, due to the PTO's more direct connection to the engine's output shaft. Note that always verifying which type of horsepower is quoted is crucial to understand the specific capabilities of your tractor. Why is this distinction so important? Because choosing the correct implement for your tractor depends greatly on the available drawbar or PTO horsepower.
Keeping Your Ford 4000 in Top Shape: A Simple Maintenance Guide
Regular maintenance is paramount for extending the life and performance of your Ford 4000. This is not just about preserving its value but also ensuring its safe and effective operation. Here's a simple yet effective maintenance plan:
Scheduled Maintenance: Adhere to a regular schedule for oil changes, filter replacements (air, fuel, and oil), and inspections of belts and hoses. This preventative approach minimizes the risk of major breakdowns. Sticking to this schedule can result in a 90% reduction in unexpected repairs.
Fluid Checks: Regularly check fluid levels (engine oil, coolant, transmission fluid, and hydraulic fluid). Low levels indicate potential problems. Addressing these early avoids more extensive, and costly, repairs later on.
Parts Sourcing: Finding replacement parts for older tractors can be challenging. Online forums and vintage tractor communities are excellent resources for locating parts and obtaining expert advice.
Know Your Limits: Avoid overworking this classic machine to protect it from potential damage. Use appropriate attachments for the tasks and respect the machine's limitations and capabilities.
Weighing the Pros and Cons: Is a Ford 4000 Right for You?
| Feature | Pros | Cons |
|---|---|---|
| Horsepower Range | Sufficient for many tasks, especially smaller farms and simpler implements | Lower than modern tractors; may struggle with very large or heavy equipment |
| Engine Options | Variety of engine choices (gasoline, diesel, LPG) | Parts availability may be a challenge for some engines. |
| Transmission Options | 8-speed or 10-speed options available | 10-speed transmission adds complexity |
| Steering System | Mechanical (simple) or optional power steering | Mechanical steering can be physically demanding. |
| Open Operator Station | Easy access | Minimal protection from the elements |
The Ford 4000, despite its age, continues to be a valuable asset for both practical and sentimental reasons. Its straightforward design makes maintenance accessible, and its robust build assures long-term reliability. Understanding its capabilities and limitations, paired with consistent maintenance, is key to unlocking its full potential and enjoying years of reliable service.
How to Troubleshoot Ford 4000 Tractor Transmission Problems
Understanding Your Ford 4000 Transmission
The 8-speed transmission, while generally durable, is susceptible to issues. Recognizing these problems helps in timely intervention and reduces the risk of costly repairs.
Common Transmission Problems: Clutch Woes
Clutch failure is a common problem. Symptoms include a slipping clutch, difficulty shifting gears, or a "grabby" clutch pedal. These issues often stem from incorrect operation, such as coasting downhill in gear. This puts undue stress on the clutch, leading to lining wear and potential failure.
Troubleshooting Steps:
- Check the clutch pedal for proper free play.
- If accessible, visually inspect the clutch components for wear or damage.
- Seek professional assessment if needed.
PTO Shaft and Tube Issues: A Deeper Dive
Premature wear of the PTO input shaft often indicates misalignment during assembly, frequently caused by a missing or incorrectly installed pilot bearing. This bearing is essential for correct alignment, and its absence or damage can lead to rapid shaft wear.
Troubleshooting Steps:
- Inspect the PTO shaft and tube for wear.
- Verify the presence and condition of the pilot bearing.
- Precise measurements may be necessary to assess alignment issues.
Preventative Maintenance: Your Best Defense
Regular maintenance is essential to increase the longevity of your Ford 4000's transmission. This includes regular fluid changes, lubrication, and proper operation.
Best Practices:
- Smooth gear shifting
- Avoid coasting downhill
- Regular inspection of components
- Adherence to the manufacturer's recommended maintenance schedule.
Remember, transmission issues can be complex. Consult a qualified mechanic experienced with vintage Ford tractors if you are unsure about any aspect of diagnosis or repair.
